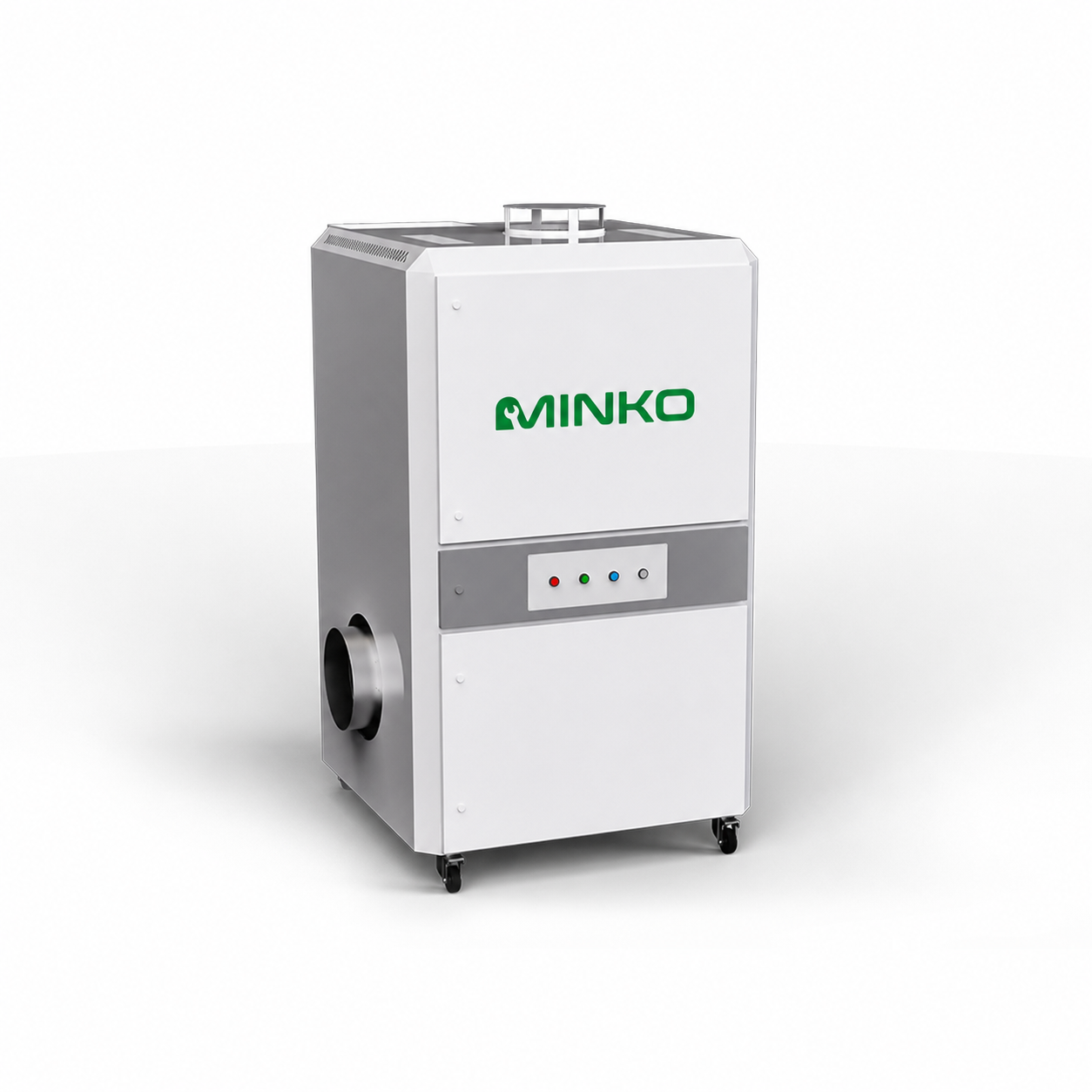

The 7.5kW Industrial Welding Fume Extraction System is designed for collecting welding smoke, welding fumes and airborne particles generated during welding operations. It is suitable for welding workshops, metal fabrication plants, machinery manufacturing, repair workshops and industrial production areas.
The system supports both remote control and manual control, making operation more convenient for different workshop layouts. It is equipped with built-in protection functions to help reduce motor damage caused by voltage fluctuations.
The machine adopts an integrated cabinet structure, which is compact, space-saving and easy to install. The customized DF vacuum unit provides stable operation, strong suction and low noise. The automatic pulse jet filter cleaning system helps clean the filter cartridges automatically, extending filter service life and reducing maintenance work.
The filtration system uses high-efficiency flame-retardant nano filter cartridges with high filtration accuracy, long service life and smooth surfaces for easier cleaning. The airtight cabinet design provides good sealing performance, while the compact inlet and outlet duct design helps reduce airflow resistance.
The fume extraction inlet position and size can be customized according to the actual welding station layout and customer requirements.
Key Features:
– 7.5kW industrial welding fume extraction system
– Designed for welding smoke and fume collection
– Suitable for welding workshops and metal fabrication plants
– Supports remote control and manual control
– Built-in protection function helps protect the motor from voltage-related damage
– Integrated compact cabinet design saves installation space
– Customized DF vacuum unit for stable operation and strong suction
– Low-noise operation for better workshop environment
– Automatic pulse jet filter cleaning system
– High-efficiency flame-retardant nano filter cartridges
– Airtight cabinet design with good sealing performance
– Compact air inlet and outlet duct design reduces airflow resistance
– Fume extraction inlet position and size can be customized
Technical Specifications:
Product Name: Welding Fume Extraction System
Power: 7.5 kW
Voltage / Frequency: 380V / 50Hz
External Cable: Three-phase four-wire, L1 / L2 / L3 / E
External Air Source: 6–8 kg
Max. Airflow: 15,458 m³/h
Max. Negative Pressure: 1,256 Pa
Filtration Method: Ahlstrom Nano Flame-retardant Filter Cartridge
Number of Filter Cartridges: 8 pcs
Total Filtration Area: 74,304,000 mm²
Filter Cleaning Method: Pulse Jet Cleaning
External Duct Diameter: 400 mm
Machine Size: 1400 × 1500 × 2450 mm / 5.145 m³
Packing Size: 1480 × 1580 × 2600 mm / 6.1 m³
Net Weight: 800 kg
Gross Weight: 1000 kg
Applications:
– Welding smoke collection
– Welding fume extraction
– Metal fabrication workshop
– Machinery manufacturing workshop
– Welding station air filtration
– Industrial fume control
– Workshop air purification
– Centralized welding fume extraction system
– Repair and maintenance workshop
– Production line fume extraction
